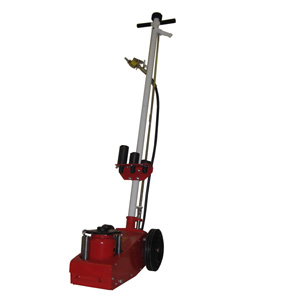

  • 22 TON AIR/HYDRAULIC SERVICE JACK
  • Item #:HJA-22
  • Brand:VALLEY
  • Inner Box:01
  • Master Box:1
  • UPC CODE:21748
Service jack can be operated manually or with the assistance of an air source to save labor and increase lifting speeds
Extreme duty, wide stance steel frame with reinforced steel side plates increase stability
Mounted on 8" / 200mm hard rubber wheels for easy mobility
Minimum air source requirements are 90 - 145 PSI / 6.2 - bar or a 3HP air compressor
Comes with 4 saddle adaptors
Meets or exceeds ANSI / ASME specifications
Minimum saddle height: 8-7/8" / 225mm
Maximum saddle height: 20-1/2" / 520mm
Ram travel length: 17" / 432mm
Screw extension: 3-1/2" / 90mm
Dimensions: 21-1/4"L X 12-3/4"W X 56-1/4" / 540L X 320W X 1430H mm
Net weight: 84 Lb / 38 kg
